AG DRILL SERIES

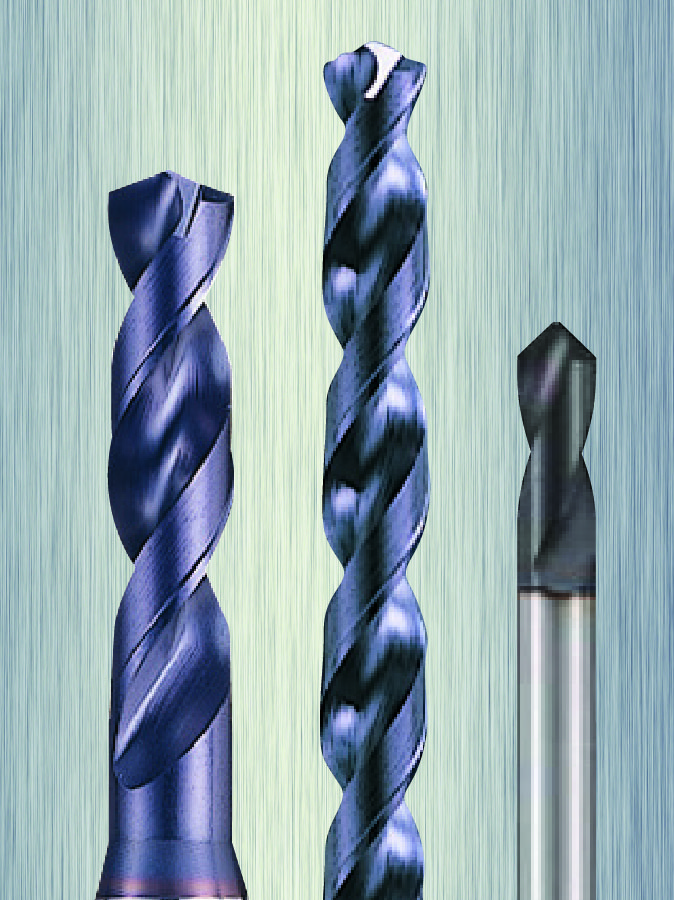

Fast-feed high performance HSS drill

  • High-performance and consistent production through a flute shape that combines both good rigidity and chip ejection.
  • AG coating with superior heat resistance and durability increases tool life.

Outline

Main text

AG Power Drills

AG Power Drills
  • AG coating with superior wear resistance and long tool life.
  • By flutes shape for non step drilling, to improve a cutting chips discharge performance while maintaining rigidity.

Lineup

Code No. Item Hole depth Size

AGPSD

AG Power Drills

 5D Ø1.0 13.0

AGPSLSD

AG Power
Semi-long Drills

 5D 10D Ø1.0 13.0

AGPLSD

AG Power Long Drills

 10D Ø1.0 20.0

D:Drill Dia.

Catalog Download
PDF AG Power Drills Series (12pages/577KB)

The listed price applies to consumers in Japan.

Page Top

Features 1

Main text

AG Power Drills

Highly rigid form and large pocket

Enlarged the point of edge


AG Coating

Cross section structure of AG coating

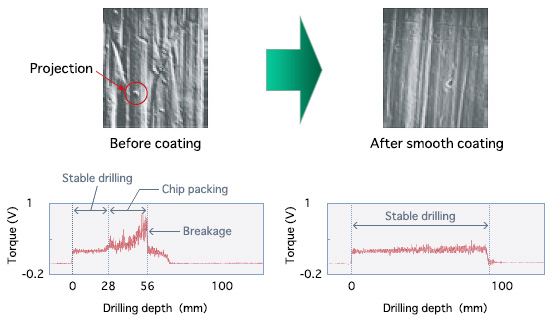

Smooth coating


Work Material

Code No. Carbon Steels Alloy Steels
Pre-
Hardened Steels		 Hardened Steels
Mold Steels		 Hardened Steels Stainless Steels Titanium Alloys
Nickel Alloys		 Cast Irons
  S45C
S50C		 SCM
NAK		 25
40HRC		 40
50HRC		 50
65HRC		 SUS304
SUS316		 SUS420 - FCD/FC
AGPSD × × ×
AGPSLSD × × ×
AGPLSD × × ×

:Excellent :Good ×:Not Used No mark:Not Recommended


Page Top

Features 2

Main text

AG Power Drills

AGPSD AG Power Drills

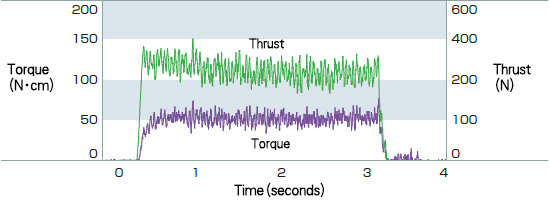

Cutting Force

Cutting conditions
Tool : AGPSD3.0 Hole depth : 15mm Blind hole
Cutting Speed : 30m/min Work Material : S50C (180HB)
Rotation : 3,180min-1 Cutting Fluid : Wet
Feed Speed : 330mm/min Machine : Vertical machining center
Feed : 0.1mm/rev Non-step

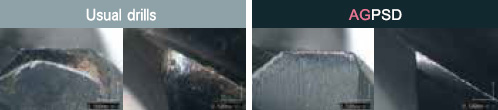

Wear comparison after 204 holes drilling


Comparison of non-step drilling of tempered alloy steel

Cutting conditions
Tool : AGPSD6.0 Hole depth : 30mm Blind hole
Cutting Speed : 24m/min Work Material : SCM440 (32HRC)
Rotation : 1,272min-1 Cutting Fluid : Wet
Feed Speed : 230mm/min Machine : Vertical machining center
Feed : 0.18mm/rev Non-step
Page Top

Performance 1

Main text

AG Power Drills

AGPSLSD AG Power Semi-long Drills

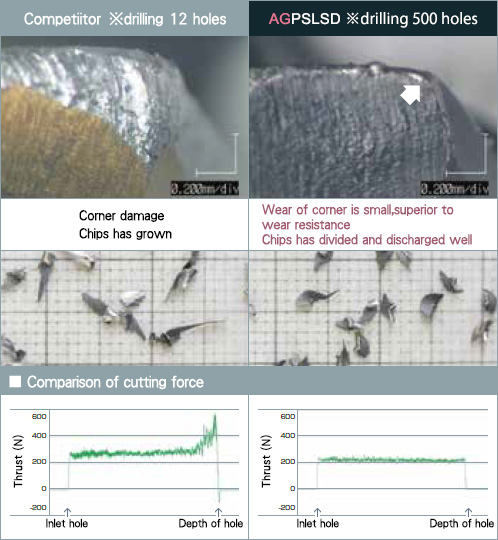

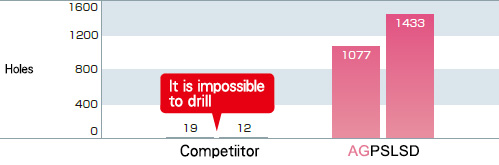

Comparison of tool life

Cutting conditions
Tool : AGPSLSD3.0 Hole depth : 21mm (7D) Blind hole
Cutting Speed : 24m/min Work Material : S50C (180HB)
Rotation : 2,500min-1 Cutting Fluid : Wet
Feed Speed : 200mm/min Machine : Vertical machining center
Feed : 0.08mm/rev Non-step

Page Top

List Numbers

AG DRILL SERIES LIST NUMBERS

6596P - Short, Metric sizes

6594P - Regular, Metric sizes

6595P - Regular, Fractional sizes

6540P - Power Long, Metric sizes

6541P - Power Long, Fractional sizes

Download:
