AQUA DRILL EX FLAT SERIES

One Step Drilling with Minimal Burr

  • True 180ยบ flat cutting edge creates minimal exit burr
  • Eliminates the need to use a center drill or end mill on inclined or curved surfaces
  • Ideally suited for flat bottom applications in the oil and gas, automotive and general industries

Outline

Main text

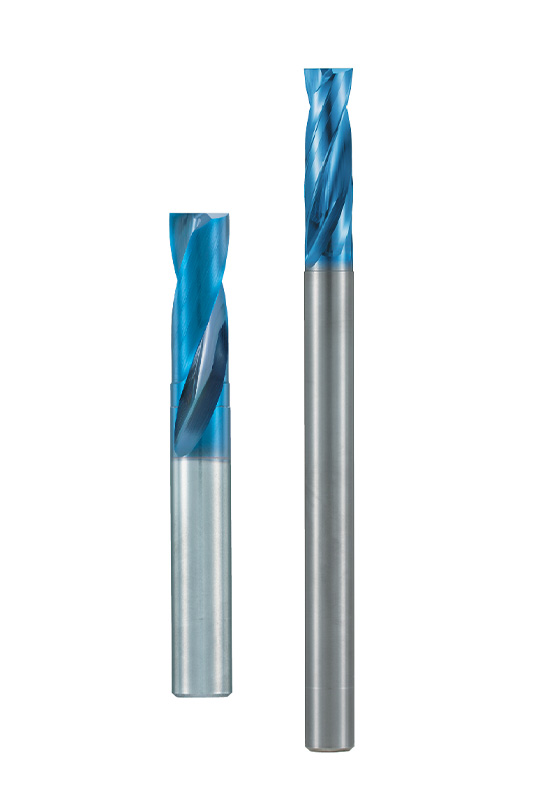

AQUA Drill EX FLAT

AQUA Drill EX FLAT Drill for counter boring has great performance.
  • Spot facing machining capability for a wide range of applications such as spot facing on slope, correction of eccentric holes, and thin plate machining.
Aqua EX Coating
  • Better heat and wear resistance from Aqua EX coating for a super long life.
Drilling efficiency improvement due to reduced processing time
  • Counter boring and guide hole drilled at the same time.
  • Effective screw length is assured when drilling set screw holes in thin material, without increasing work.

Features

Main text

AQUA Drill EX FLAT

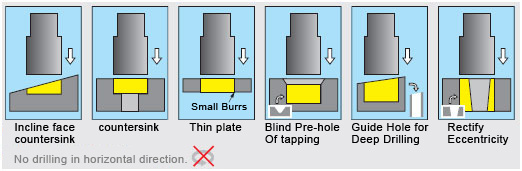

Performance opens up extensive applications

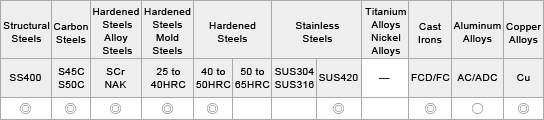

Only under 1.9mm are applicable for stainless steels (SUS304)

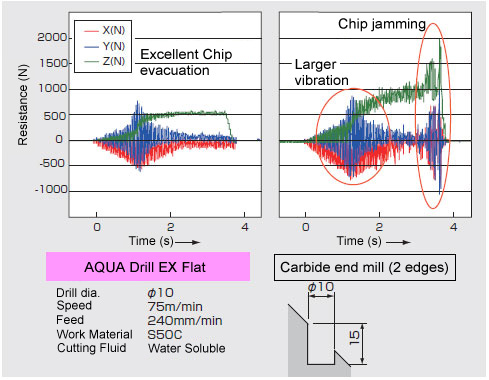

Cutting resistance on 45° angled surface

Excellent chip evacuation


Absolutely flat drill face

Completely Flat Point

AQUA EX Coating

Improved resistance to oxidation, heat and wear

Special lubrication film, AlCrTi based anti-oxidation layer, TiAl based anti-wear layer, Highly rigid carbide material


AQUA Drill EX Flat lineup

Performance 1

Main text

AQUA Drill EX FLAT

Multi-functional flat drill


High-efficiency One shot drilling with no point holes

Cutting efficiency 40% UP


Cutting condition on inclined hole drilling


Comparison with competitors counter boring drill

Comparison with competitors counter boring drill


Burr size comparisor at exit of hole inside pipe materials

Burr height:less than 1/3

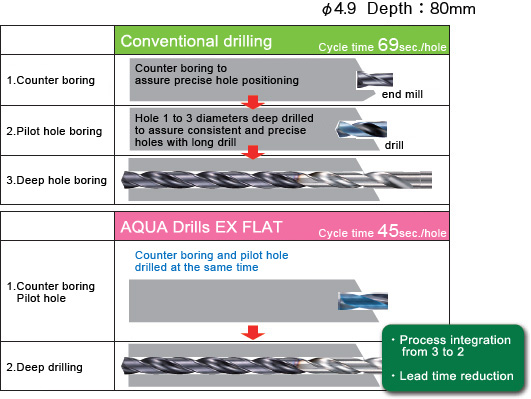

Drilling process comparison in guide holes

Process integration from 3 to 2. Lead time reduction.

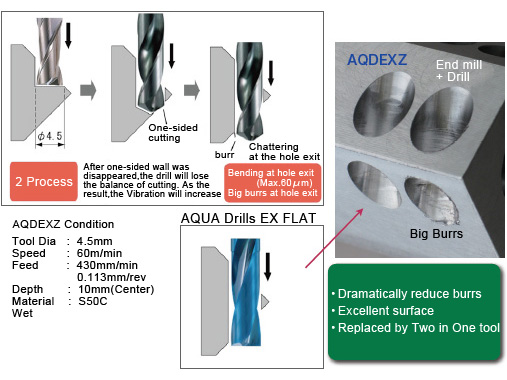

Fuel pump parts drilling on the sloped surface

Dramatically reduces burrs. Excellent surface. Replaced by two in One Tool.

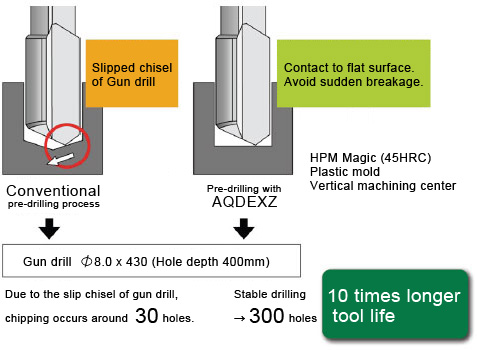

Gun Drill tool life extension with AQDEXZ as pre-drilling tool

10 times longer tool life


Get Flash Player * Flash Player is required for video playback.
  If you do not have a plug-in, download from here.
* Internet Explorer 6 or Firefox 3 or later is
  recommended for video playback.

Performance 2

Main text

AQUA Drill EX FLAT

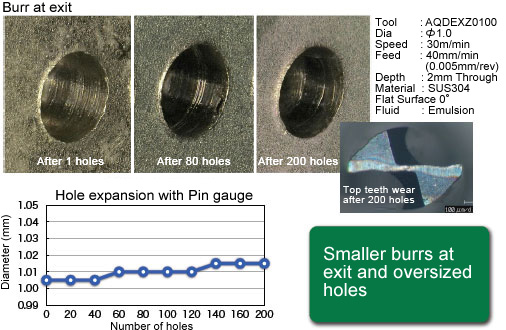

Example for stainless steels (SUS304)

Smaller burrs at exit and oversized holes

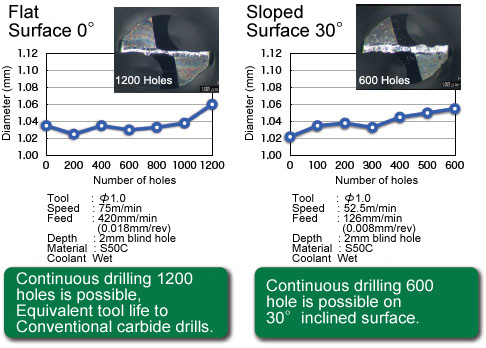

Expansion of the hole diameter for S50C

Continuous drilling 1200 hole is possible, Equivalent tool life to Conventional carbide drills. Continuous drilling 600 hole is possible on 30deg inclined surface.

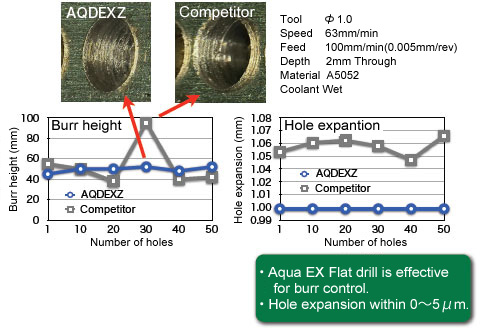

Hole accurocy of drilling thin plates of aluminum alloy (A5052)

Aqua EX Flat drills is effective for burr control. Hole expansion within 0 to 5 micro m.

List Numbers

AQUA DRILL EX FLAT LIST NUMBERS

  • 9610 - Stub, Metric sizes
  • 9611 - Stub, Fractional sizes
  • 9628 - Super Stub, Metric sizes
  • 9818 - Regular, Metric sizes
  • 9819 - Regular, Fractional sizes
  • 9830 - Radius, Metric sizes
  • 9831 - Radius, Fractional sizes
  • 9816 - Long Shank, Metric sizes
  • 9817 - Long Shank, Fractional sizes

Download:

WARNING: This product contains Cobalt, a chemical known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
