SS Series Wet Type Solenoid Operated Directional Control Valve (G03)

  • Highly reliable wet solenoid structure terminal box type for easy wiring.
  • Waterproof and dustproof rank: JIS C 0920 IP64
  • Shockless type also available to prevent shock when switching.
  • UL-recognized products available.

Features

Main text

SS Series Wet Type Solenoid Operated Directional Control Valve (G03)

SS Series Wet Type Solenoid Operated Directional Control Valve (G03)
  • Highly reliable wet solenoid Structure
  • Terminal box type for easy wiring
  • Waterproof and dustproof rank: JIS C 0920 IP64
  • Shockless type also available to prevent shock when switching
  • UL-recognized products available
Page Top

Application

Main text

SS Series Wet Type Solenoid Operated Directional Control Valve (G03)

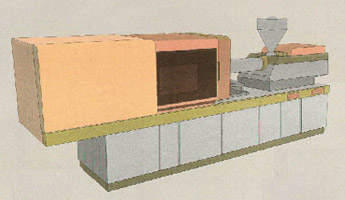

  • General industrial machinery including mainly machine tools and forging / forming equipment
  • Transfer machines required for complicated wiring
SS Series Wet Type Solenoid Operated Directional Control Valve (G03)

SS Series Wet Type Solenoid Operated Directional Control Valve (G03)
Page Top

Specifications

Main text

SS Series Wet Type Solenoid Operated Directional Control Valve (G03)

G03 Valve Specifications

Item AC
C *		 Rectifier
built-in type
E *		 DC
D *
Maximum working pressure 35MPa
Maximum flow 130 L/min 160 L/min
Allowable back pressure 16MPa
Options Indicator light
Shockless -
Surgeless -
Manual push button
Quick return - -
Dustproof and waterproof rank IP64 IP64 IP64
Mass Single SOL. 3.5kg 4.1kg
Double SOL. 4.2kg 5.5kg

Note : Maximum flow depends on channel type and working pressure.


G01 Solenoid Specifications

Solenoid type Power supply Frequency (Hz) Initial current (A) Holding current (A) Holding electricity (W) Allowable voltage (V)
AC C1 50 5.4 0.92 36 80 to 110
60 4.6 0.62 34 90 to 120
C2 50 2.7 0.46 36 160 to 220
60 2.3 0.31 34 180 to 240
Rectifier built-in
type		 E1 - 0.40 34 90 to 110
E2 - 0.22 37 180 to 220
DC D1 - 2.6 31 10.8 to 13.2
D2 - 1.5 36 21.6 to 26.4
