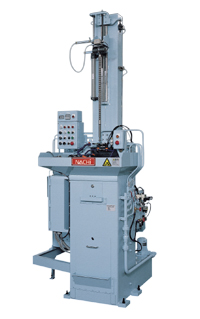

Small size broaching machines NBV series

Low-Floor Type Small Size General Purpose Machine

  • Internal broaching machine, space saving and made of simple construction.
  • High productivity from keyway to spline cutting.

Features

Low-floor type small size general purpose machine

  • Internal broaching machine of simple construction and space saving.
  • High productivity from keyway to spline cutting.

Machining Examples

[Photo]

Machining Examples

Specifications

Machine Specifications

NBV-3-6/8
/10		 NBV-3-6/8
/10A		 NBV-5-6/8
/10		 NBV-5-6/8
/10A		 NBV-7,
5-12
Pulling force (KN) 30 30 50 50 75
Max. stroke (mm) 600/800
/1,000		 600/800
/1,000		 600/800
/1,000		 600/800
/1,000		 1,200
Cutting speed
(m/min,60Hz)		 1 to 6.5 1 to 6.5 1 to 6.5 1 to 6.5 1 to 7.2
Return speed
(m/min,60Hz)		 12 12 12 12 12
Broach lifter stroke (mm) - 400 - 400 400
Bolster hole diameter (mm) 120 120 120 120 120
Max. workpiece dia. (mm) 300 300 300 300 300
Table height (mm) 1,000/
1,200/
1,400		 1,000/
1,200/
1,400		 1,000/
1,200/
1,400		 1,000/
1,200/
1,400		 2,000
Main motor (kW) 3.7 3.7 5.5 5.5 11
Machine height (mm) 2,100/
2,500/
2,900		 2,350/
2,750/
3,200		 2,100/
2,500/
2,900		 2,350/
2,750/
3,200		 4,550
Floor space
(mm x mm)		 1,100
x
1,600		 1,100
x
1,600		 1,300
x
1,600		 1,300
x
1,600		 1,100
x
2,000
Mass of Machine (kg) 1,500 1,700 1,700 1,900 2,500
